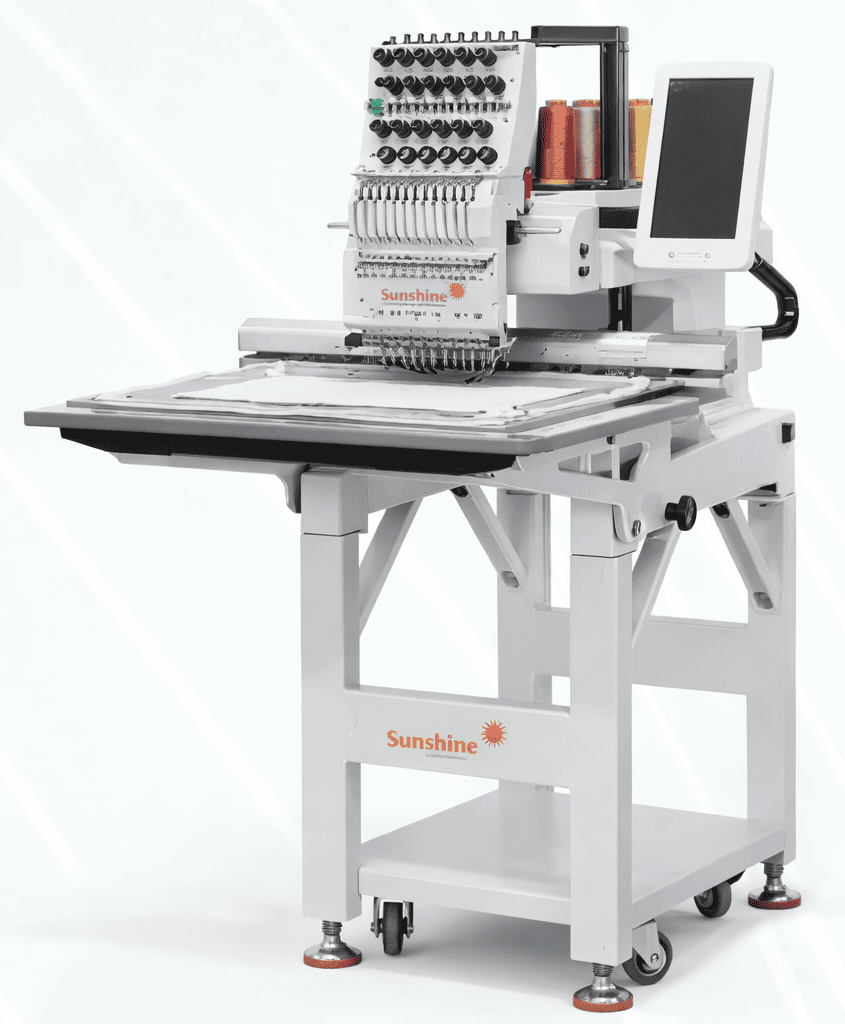

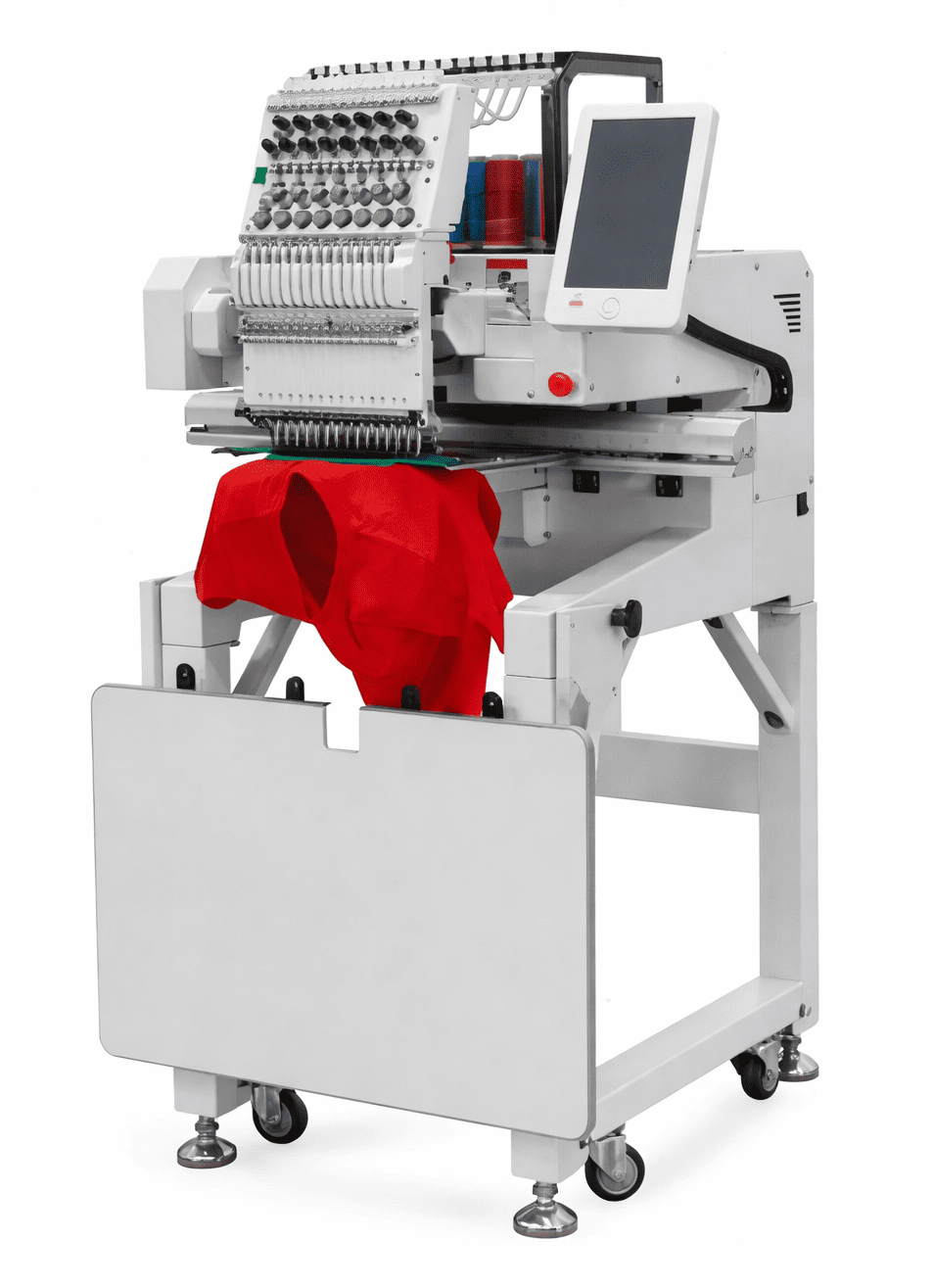

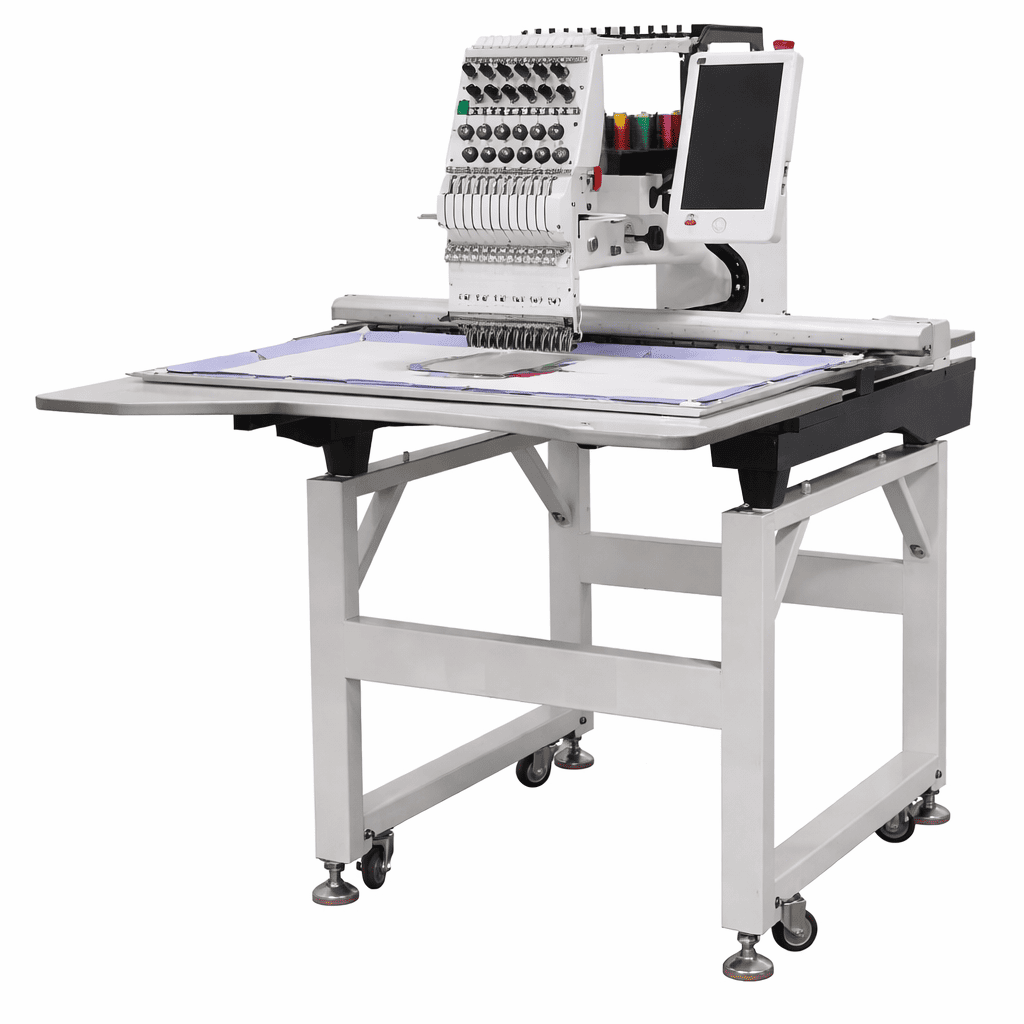

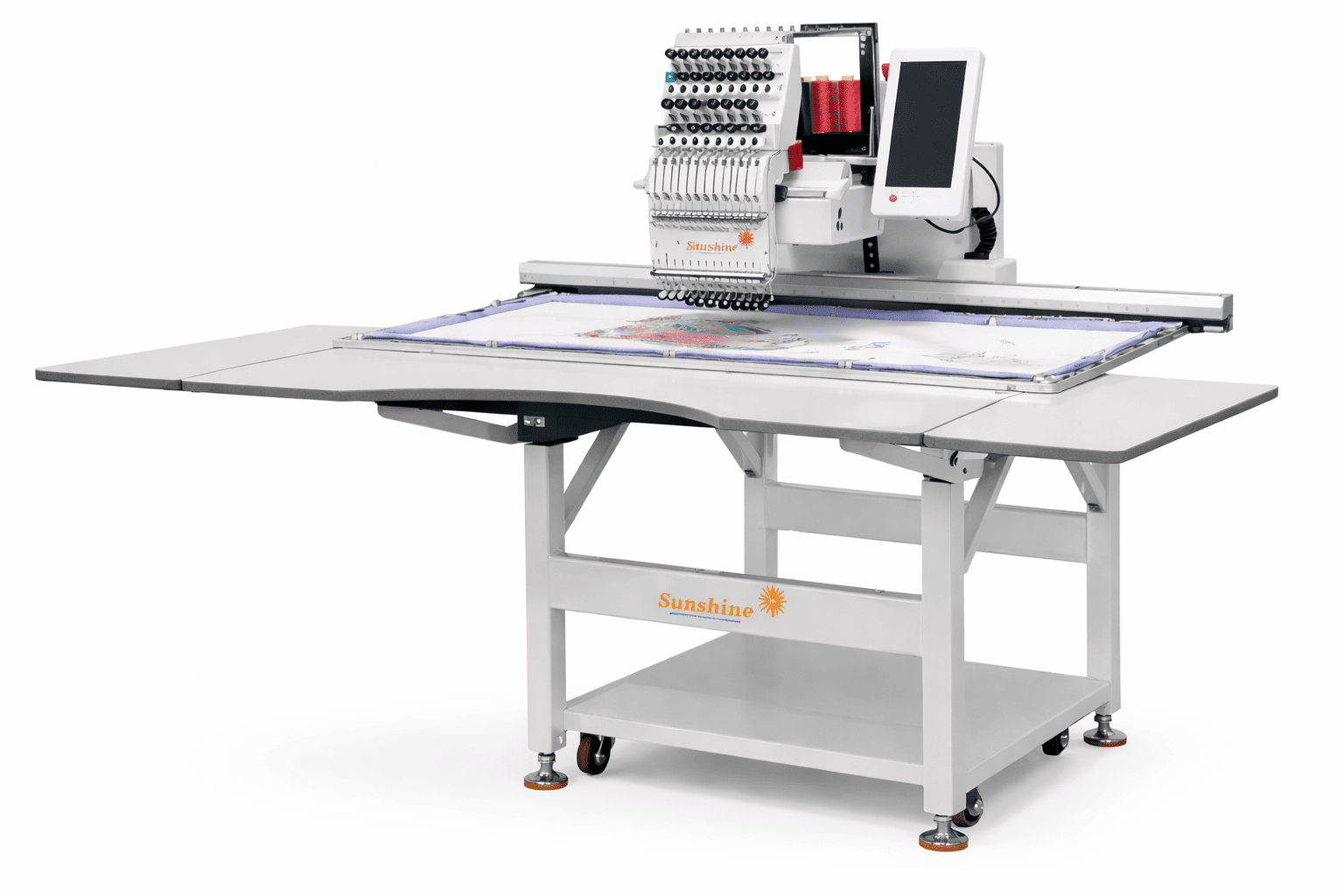

Pro
- Models Available
- 816
- 1216
- 1624
| MODEL | HEAD | NEEDLES | EMB.AREA (X:mm) | EMB.AREA (Y:mm) |
|---|---|---|---|---|
| SUP-1201 | 1 | 9/12/15 | 200/350/400 | 300/350 |
FU Type
- Models Available
- B - 1632
- B - 2032
- C - 1632
- C - 2032
- F - 1632
- F - 2032
| MODEL | HEAD | NEEDLES | EMB.AREA (X:mm) | EMB.AREA (Y:mm) |
|---|---|---|---|---|
| SUP - 1201 | 1-8 | 9/12/15 | 600/800/1000/1200/1500 | 350/400/500/700 |
Features
- Suitable for embroidery on flats, caps, finished garments, arts, and more.
- Compact and lightweight, perfect for startups or home businesses.
- Free changing between garment frame and cap frame, easy to operate.
- Finished garment embroidery speed up to 1200rpm, cap embroidery 600rpm. 05. 270° wide angle cap system.
- Convenient power failure recovery embroidery function, preventing embroidery misalignment halfway through.
- Capable of full screen preview design trace.
- Auto start and color change, supporting up to 250 color changes.
- Thread break detection and prevention to prevent thread breakage.
- Supports Chinese, English, Spanish, Turkish, Arabic, and many other local languages.
Large Frame
- Models Available
- B - 2048
- C - 2048
- F - 2048
| MODEL | HEAD | NEEDLES | EMB.AREA (X:mm) | EMB.AREA (Y:mm) |
|---|---|---|---|---|
| SUP-1201 | 1 | 9/12/15 | 600/800/1000/1200/1500 | 300/400/500/700 |
Butterfly Model
- Models Available
- B - 1632
- B - 2032
- C - 1632
- C - 2032
| MODEL | HEAD | NEEDLES | EMB.AREA (X:mm) | EMB.AREA (Y:mm) |
|---|---|---|---|---|
| SUP - 1201 | 1-8 | 9/12/15 | 600/800/1000/1200/1500 | 350/400/500/700 |

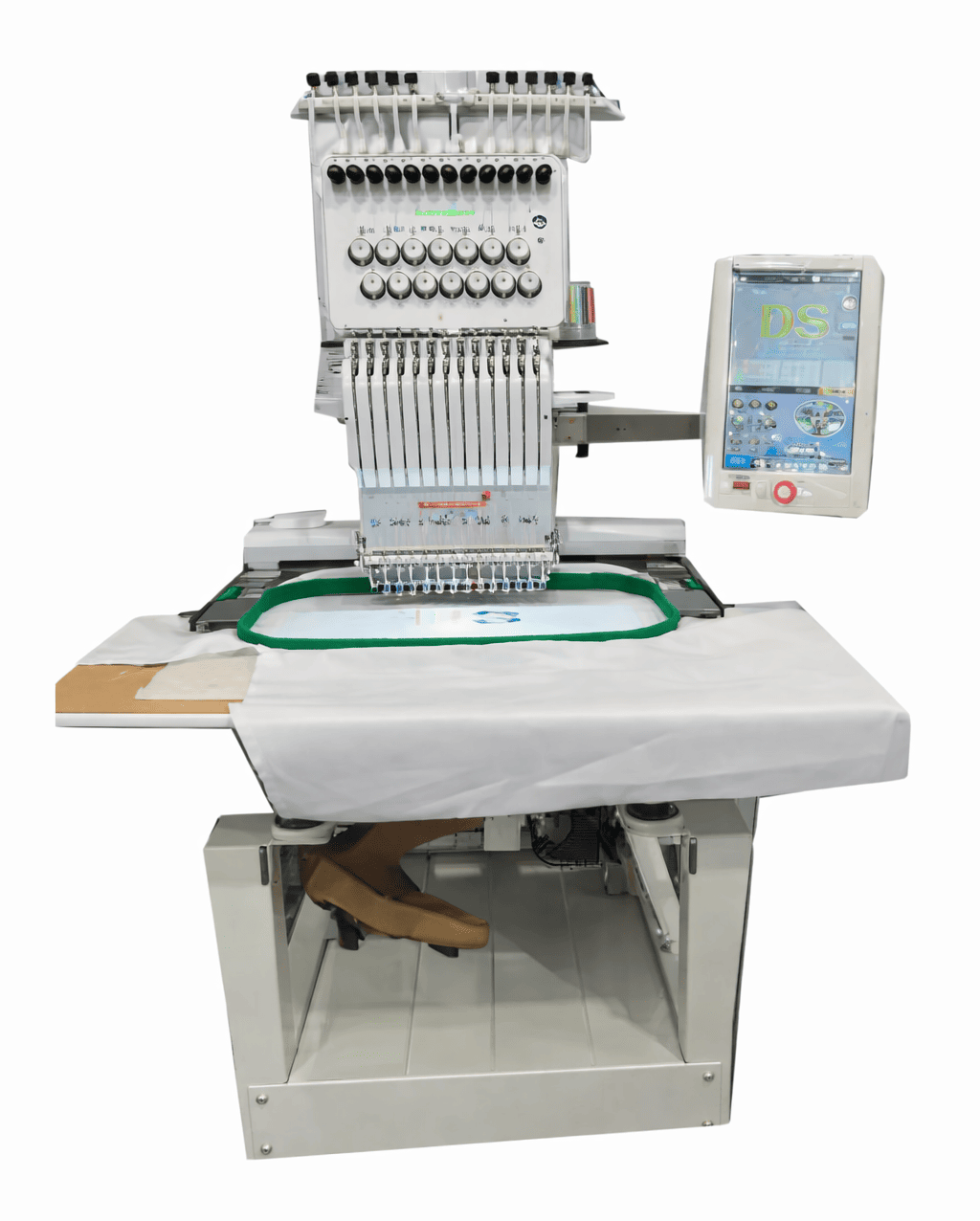

C Type
| MODEL | HEAD | NEEDLES | EMB.AREA (X:mm) | EMB.AREA (Y:mm) |
|---|---|---|---|---|
| SUP-1201 | 1 | 9/12/15 | 600/800/1000/1200/1500 | 350/400/500/700 |
Features
- Suitable for embroidery on flowers, caps, garments, ready-made clothes, sarees, and other textile products.
- Suitable for embroidery on handbags and other similar fabric materials.
- Supports Garment Frame and Cap Frame, making embroidery easy for different products.
- Maximum speed:Garment embroidery - 1200 RPM, Cap embroidery - 600 RPM
- 270° wide angle cap system for efficient cap embroidery.
- Equipped with automatic thread trimming system, which helps improve embroidery efficiency.
- Built with a strong and durable machine structure for long-term use.
- Supports large embroidery designs, capable of handling up to 250,000 stitches.
- Provides high precision embroidery, ensuring neat and detailed stitching.
- Compatible with Chenille, Embroidery, Sequin, Taping, Cording and other decorative stitching options.

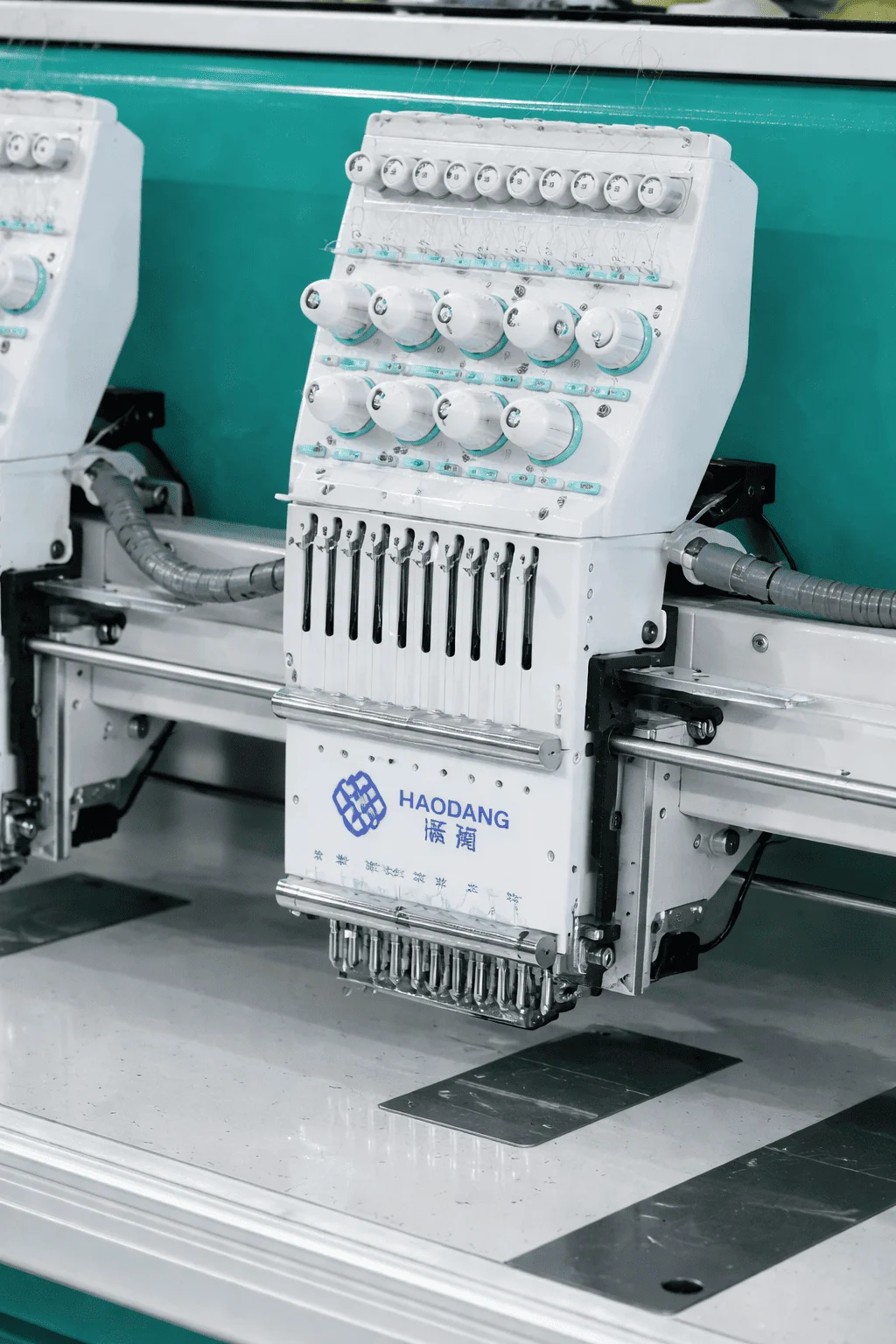

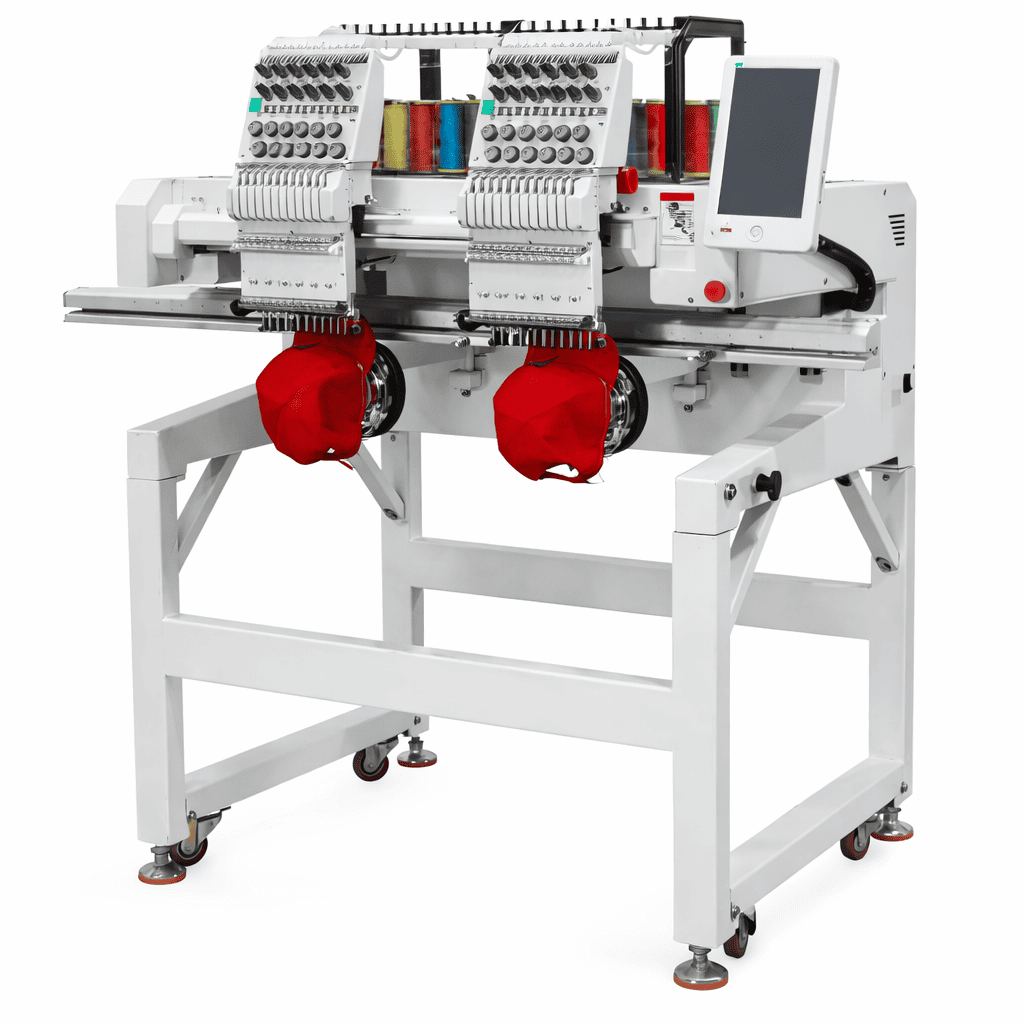

TWO HEAD C TYPE EMBROIDERY MACHINE
| MODEL | HEAD | NEEDLES | EMB.AREA (X:mm) | EMB.AREA (Y:mm) |
|---|---|---|---|---|
| SUP-1202 | 2 | 9/12/15 | 600/800/1000 | 350/400/500/700 |

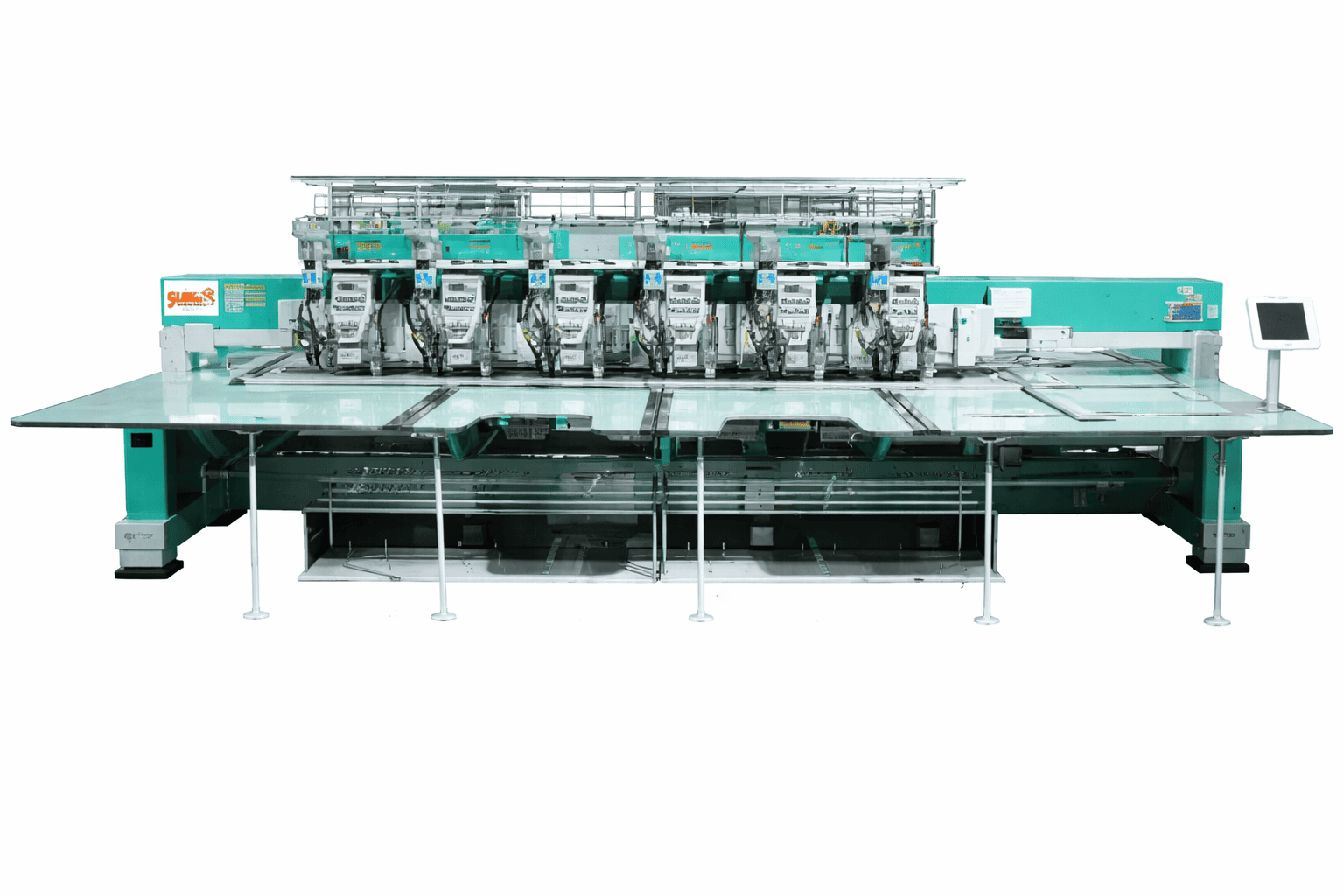

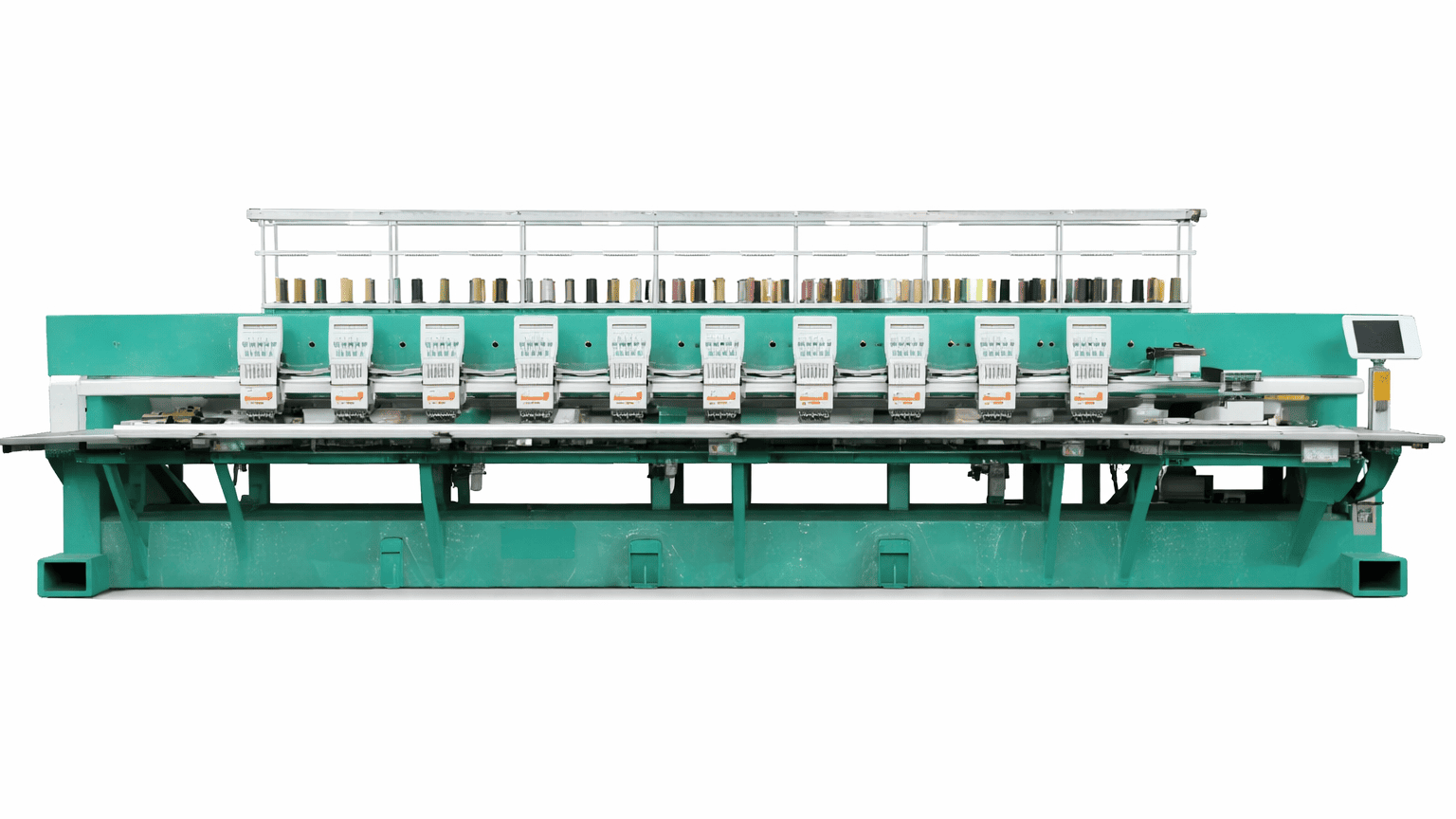

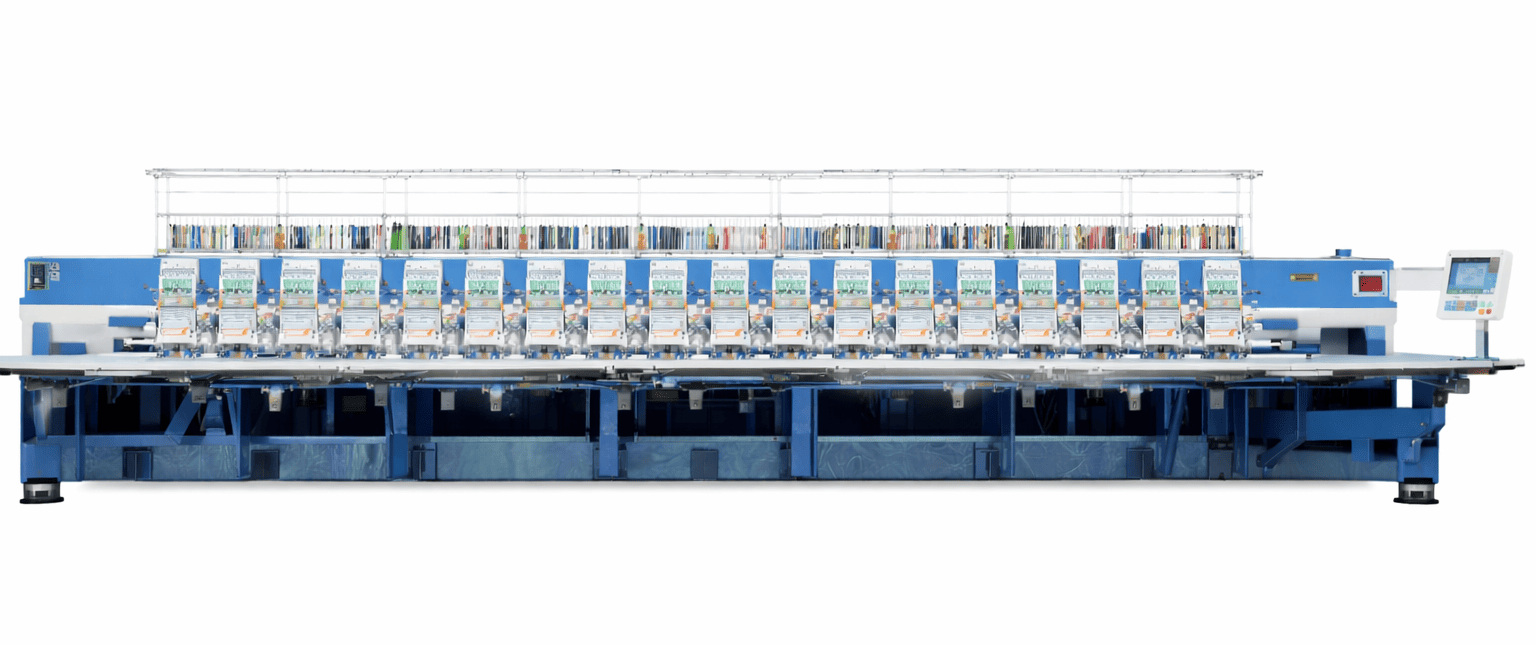

HIGH SPEED 1500 RPM FLAT GARMENT PIECE EMBROIDERY MACHINE
Common Models
| Model | Needle | Head Group | Head Space | Emb. Area |
|---|---|---|---|---|
| 918 | 9 | 18 | 380 | 800*1050 |
| 624 | 6 | 24 | 330 | 700*800 |
| 636 | 6 | 36 | 200*400 | 1500 |
Highlights Of The Optional Machine

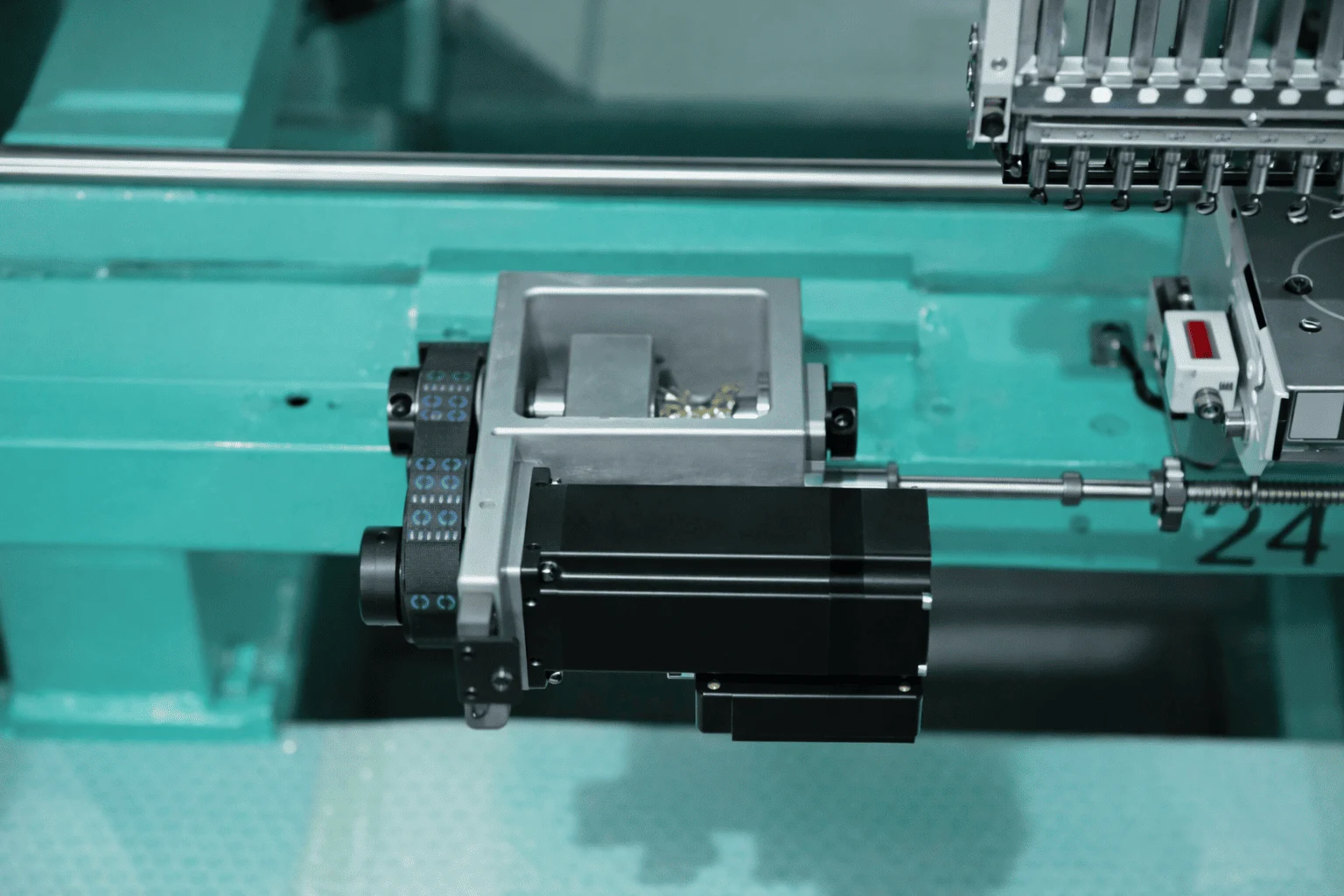

- SCREW ROD COLOR CHANGE
- DAHAO SERVO MOTOR
- MOTOR TRIMMING

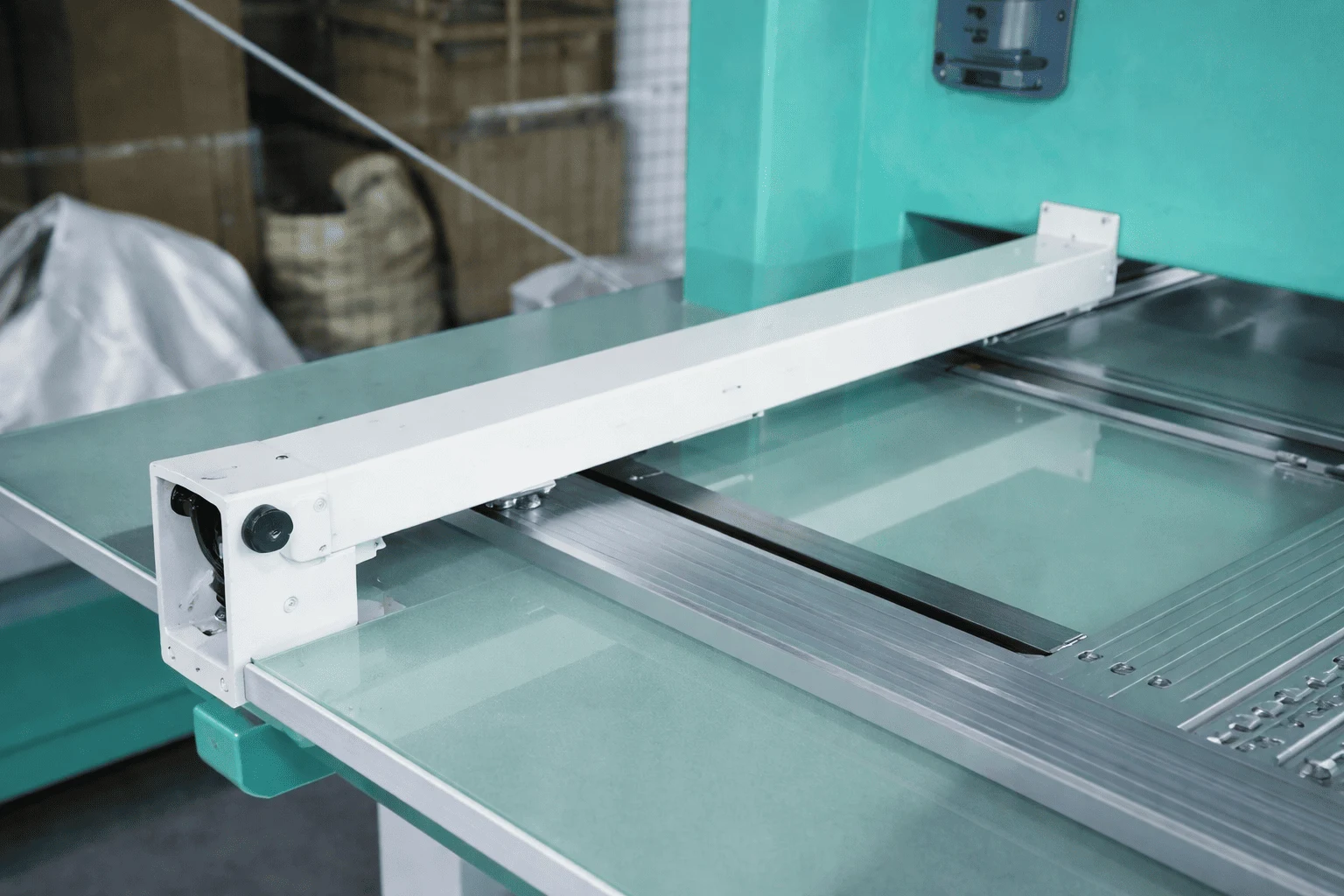

- UPPER THREAD HOLDING
- DYNAMIC PANTOGRAPH

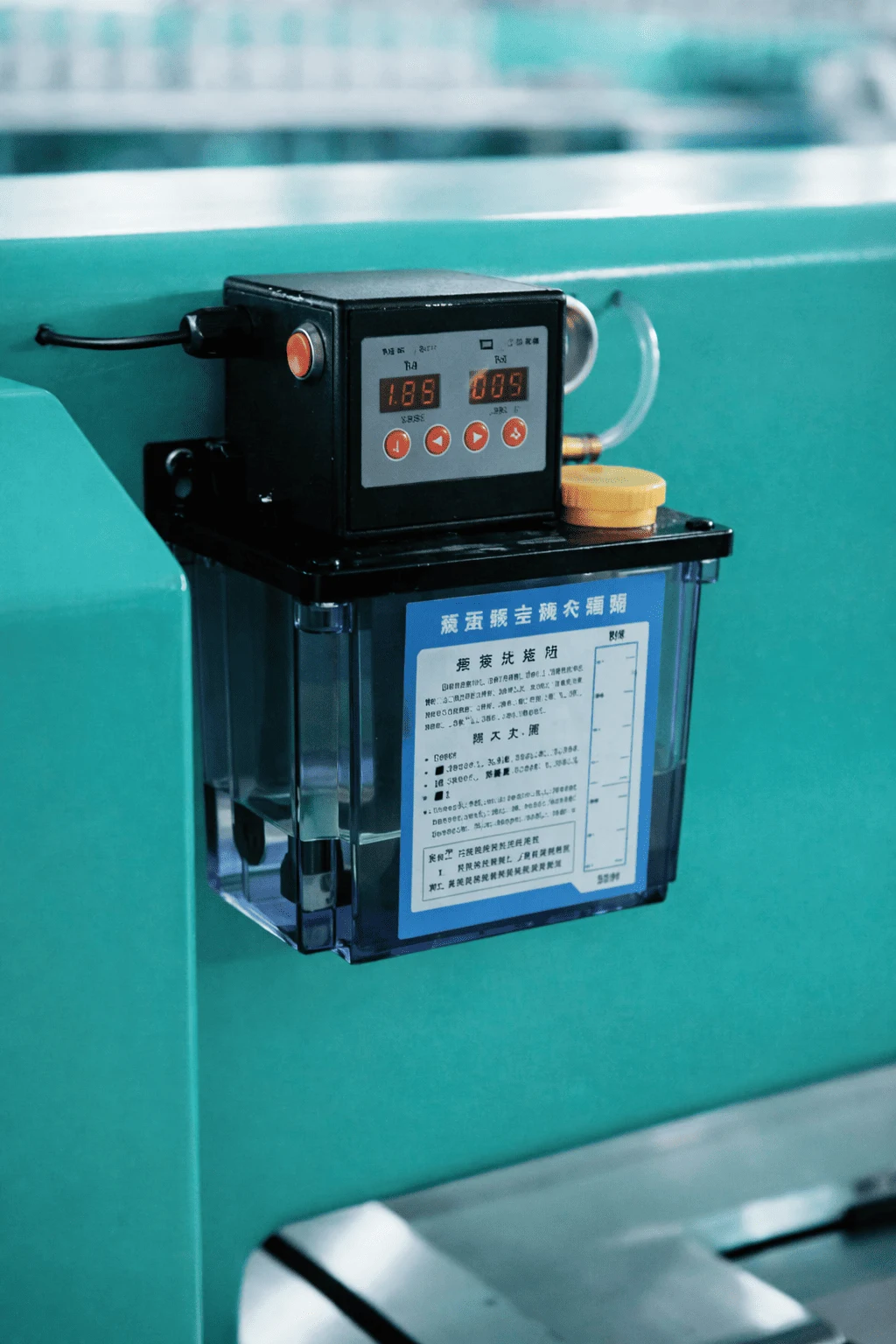

- ONE TOUCH LUBRICATION (automatic optional)
- ONE PIECE TYPE OR SPLIT TYPE OPTIONAL
Key Features
| Flat Max Speed | Max 1500 RPM | |
|---|---|---|
| Stitch Length | 0.1mm - 12.7mm | |
| Motor | Main | 2 Servo Motor *1 or 2 |
| X-Y | *2 Servo Motor *2 | |
| Power Input | 380V, 1-phase 220V, 3-phase 380V | |
| Color Change Option | SCREW ROD OR CAM COLOR CHANGE | |
| Jump Mode | MOTOR OR SOLENOID | |
| Upper Thread Holding | STANDARD | |
| Lubrication System | ONE TOUCH OR AUTOMATIC LUBRICATION SYSTEM | |

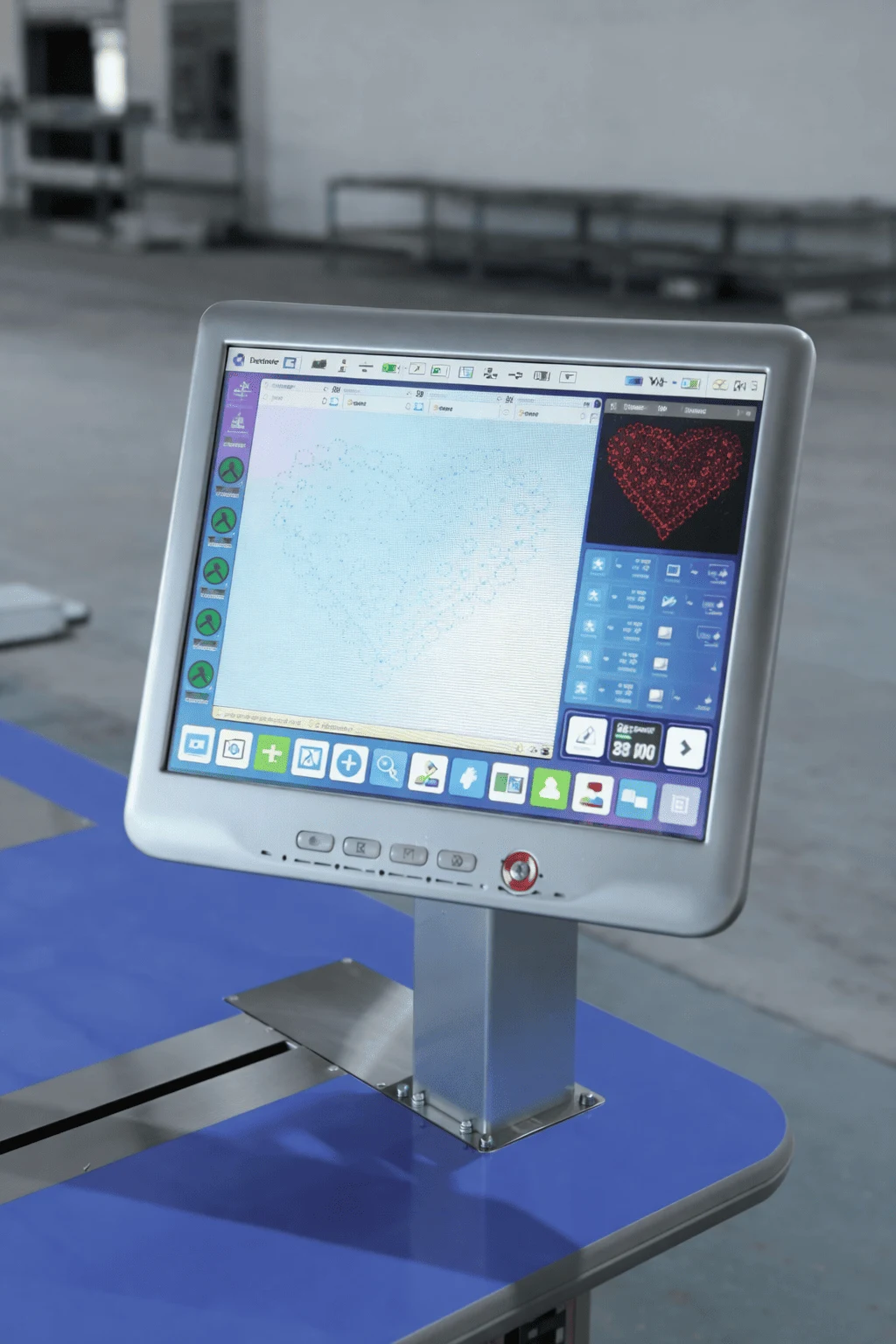

| Operation Box | 10 INCH OR 15 INCH TOUCH SCREEN | |
| Rotary Hook / Bobbin Case | STANDARD HOOK, OPTION: LARGE SIZE HOOK | |
| Memory Capacity | 100 MILLION STITCHES | |
| Flat Trimming Option | MOTOR OR CAM TRIMMING | |
| Safety Device | EMERGENCY STOP, ERROR CODE MESSAGE | |
| Optional Device | SINGLE SEQUIN / DUAL SEQUIN / EASY CORDING / EASY LOOP / BORING / LOOSE BEADS / LASER CUTTING | |
MIXED CHENILLE FLAT EMBROIDERY MACHINE WITH BEADS DEVICE AND CORDING DEVICE
Highlights Of The Optional Machine
- OVERHEAD SUSPENDING
- AUTOMATIC LUBRICATION
- SCREW ROD COLOR CHANGE
- AUTOMATIC SIR CLEAN
- HIGH SPEED CHENILLE HEAD
- COOLING FAN
- MAIN MOTOR
- DUAL H SHAFT MOTOR
- DYNAMIC PANTOGRAPH
Key Features
| Flat Max Speed | Max 1500 RPM | |
|---|---|---|
| Chenille Max Speed | Max 1200 RPM | |
| Stitch Length | 0.1mm - 12.7mm | |
| Motor | Main | servo motor *2 |
| X-Y | servo motor *2 | |
| H Looper | servo motor *1 or 2 | |
| D Needle | servo motor *1 | |
| T Loose | stepping motor *1 or 2 | |
| Power Input | 1-phase 220V, 3-phase 380V | |
| Color Change Option | SCREW ROD OR CAM COLOR CHANGE | |
| Jump Mode | MOTOR OR SOLENOID | |
| Upper Thread Holding | STANDARD ON FLAT HEAD | |
| Lubrication System | ONE TOUCH OR AUTOMATIC LUBRICATION SYSTEM | |
| Operation Box | 10 INCH OR 15 INCH TOUCH SCREEN | |
| Rotary Hook / Bobbin Case | STANDARD HOOK, OPTION: LARGE SIZE HOOK | |
| Memory Capacity | 100 MILLION STITCH | |
| Flat Trimming Option | MOTOR OR CAM TRIMMING | |
| Chenille Trimming Option | INDIVIDUAL TRIMMING | |
| Looper Base Clean | AUTOMATIC AIR CLEAN | |
| Safety Device | EMERGENCY STOP, ERROR CODE MESSAGE | |
| Optional Device | SINGLE SEQUIN / DUAL SEQUIN / EASY CORDING / EASY LOOP / BORING / LOOSE BEADS / LASER CUTTING | |

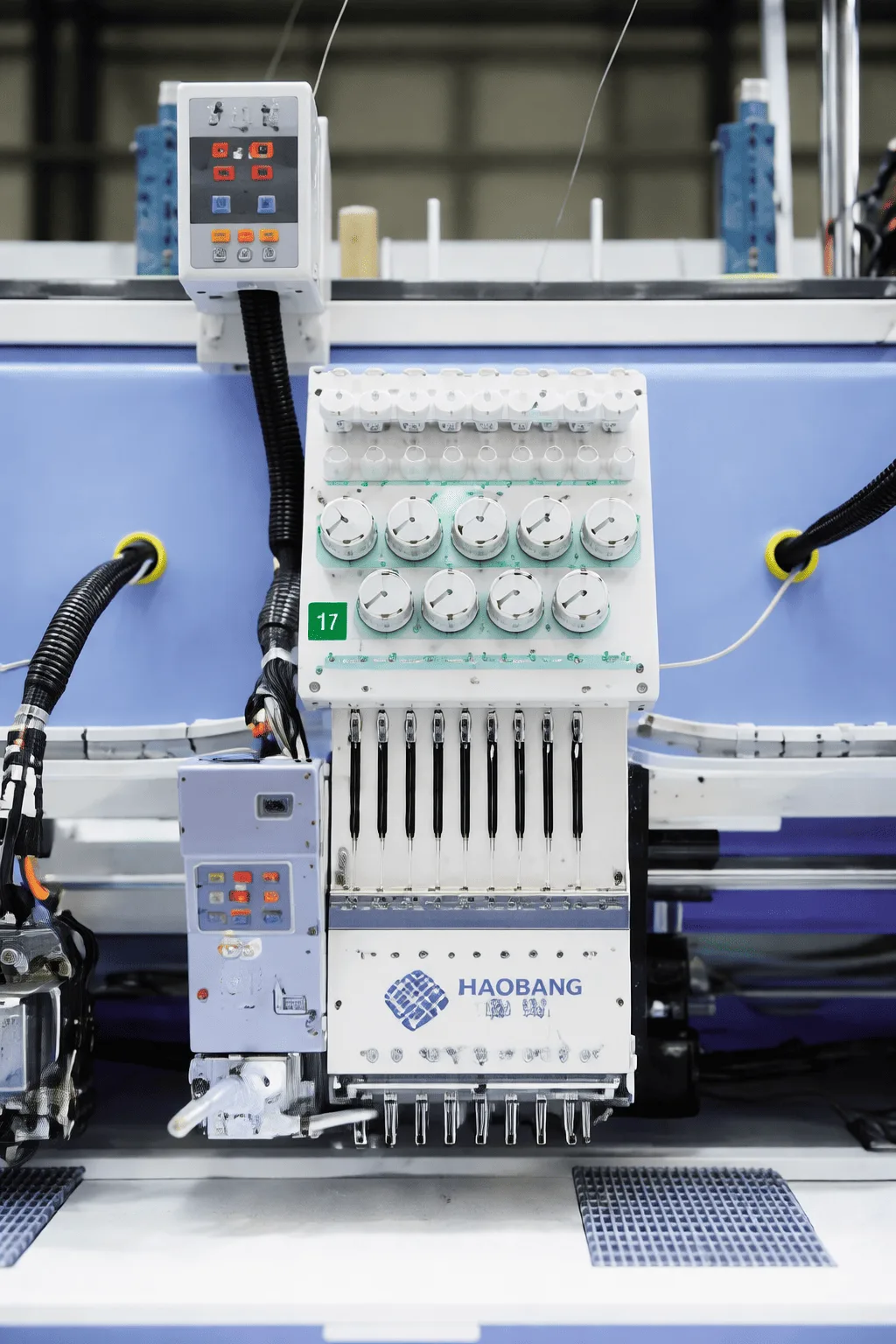

HIGH SPEED FLAT EMBROIDERY MACHINE WITH LASER DEVICE, BEADS & SEQUENCE DEVICE AND EASY CORDING DEVICE (INDIA REGULAR MODEL)
Common Models
| Model | Needle | Head Group | Head Space | Emb. Area |
|---|---|---|---|---|
| 915 | 9 | 15 | 300*600 | 800 |
| 915 | 9 | 15 | 400*450 | 1200 |
| 908 | 9 | 15 | 400*900 | 1000 |
Highlights Of The Optional Machine
- MATE A8
- SCREW ROD COLOR CHANGE
- DAHAO SERVO MOTOR
- AUTO LUBRICATION (MIST OIL OPTIONAL)
- MOTOR TRIMMING
- UPPER THREAD HOLDING
- DYNAMIC PANTOGRAPH
Key Features
| Flat Max Speed | Max 1500 RPM | |
|---|---|---|
| Stitch Length | 0.1mm - 12.7mm | |
| Motor | 主轴 Main | Servo Motor *1 or 2 |
| 框架 X-Y | Servo Motor *2 | |
| Power Input | 1-phase 220v, 3-phase 380v | |
| Color Change Option | SCREW ROD OR CAM COLOR CHANGE | |
| Jump Mode | MOTOR OR SOLENOID | |
| Upper Thread Holding | STANDARD | |
| Lubrication System | ONE TOUCH OR AUTOMATIC LUBRICATION SYSTEM | |
| Operation Box | 10 INCH OR 15 INCH TOUCH SCREEN | |
| Rotary Hook / Bobbin Case | STANDARD HOOK, OPTION: LARGE SIZE HOOK | |
| Memory Capacity | 100 MILLION STITCH | |
| Flat Trimming Option | MOTOR OR CAM TRIMMING | |
| Safety Device | EMERGENCY STOP, ERROR CODE MESSAGE | |
| Optional Device | SINGLE SEQUIN / DUAL SEQUIN / EASY CORDING / EASY LOOP / BORING / LOOSE BEADS / LASER CUTTING | |

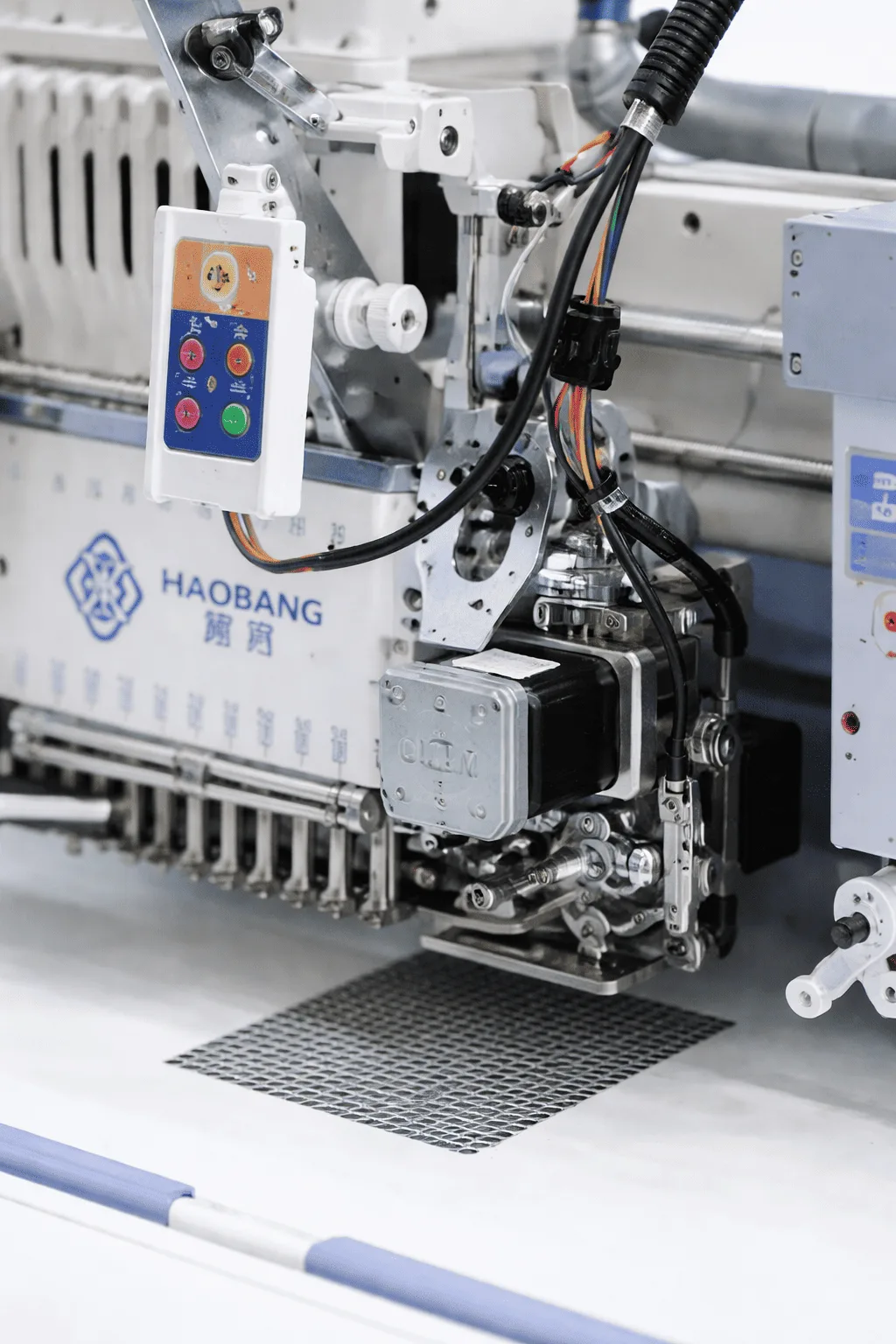

HIGH SPEED 1500 RPM FLAT EMBROIDERY MACHINE WITH SEQUIN DEVICE CORDING DEVICE AND LASER DEVICE
Highlights Of The Optional Machine
- SCREW ROD COLOR CHANGE
- DAHAO SERVO MOTOR
- AUTO LUBRICATION (MIST OIL OPTIONAL)
- MOTOR TRIMMING
- UPPER THREAD HOLDING
- DYNAMIC PANTOGRAPH
Key Features
| Flat Max Speed | Max 1500 RPM | |
|---|---|---|
| Stitch Length | 0.1mm-12.7mm | |
| Motor | Main | Servo Motor *1 or 2 |
| X-Y | Servo Motor *2 | |
| Power Input | 1-phase 220v, 3-phase 380v | |
| Color Change Option | SCRW ROD COLOR CHANGE | |
| Jump Mode | MOTOR OR SOLENOID | |
| Upper Thread Holding | STANDARD | |
| Lubrication System | ONE TOUCH OR AUTOMATIC LUBRICATION SYSTEM | |
| Operation Box | 10 INCH OR 15 INCH TOUCH SCREEN | |
| Rotary Hook /bobbin Case | STANDARD HOOK, OPTIAN: LARGE SIZE HOOK | |
| Memory Capacity | 100 MILLION STITCH | |
| Flat Trimming Option | MOTOR OR CAM TRIMMING | |
| Safety Device | EMERGENCY STOP, ERROR CODE MESSAGE | |
| Optional Device | SINGLE SEQUIN / DUAL SEQUIN / EASY CORDING / EASY LOOP / BORING / LOOSE BEADS / LASER CUTTING | |
